Gedore 7 Series Imperial Combination Spanner Wrench 3/8″ AF

Description

• Product code: 1436767.
• Model/series: 7 series.
• Acc. to DIN 3113, Form A, ISO 3318, ISO 7738
• Chrome-vanadium steel 31CrV3, chrome-plated
• Carefully forged and professionally machined
• Slim jaw and jaw walls make this spanner lighter overall
• Jaw: ground precisely to exact nominal size for optimum contact areas
• Ring: 15° offset from shaft, with UD profile for gentle transmission of force
• Overloading indicated by deformation
• Secure grip thanks to hollow shaft – very ergonomic and handy
• Glare-free look due to matt chrome
• Designed for universal use
• Top-grade industrial quality for the hardest of continuous use.

• Length: 140mm.
• Weight: 0.038kg.

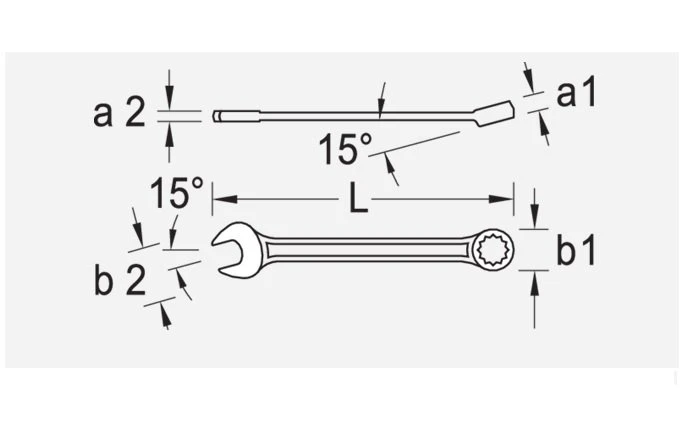

• A1: 7mm.
• A2: 4.2mm.
• B1 : 15.5mm.
• B2: 23mm.
