Gedore 1B Imperial Combination Spanner Wrench 1.1/4″ AF

Description

• Design in accordance with DIN 3113, form B, ISO 3318, ISO 7738
• With same size each end
• Chrome-vanadium steel 31CrV3, chrome-plated
• Satin non-glare finish
• Carefully forged and professionally machined
• Ring: cranked and 10° angled, with UD profile for gentle power transmission, from SW 1.3/8″ 12-edge ring
• Jaw: ground precisely to exact nominal size for optimum contact areas
• Slim ribbed open end for added strength guarantees maximum torques
• Overloading indicated by deformation
• The offset ring ensures a better grip on deep-seated or inset nuts or bolts
• Top-grade industrial quality for the hardest of continuous use

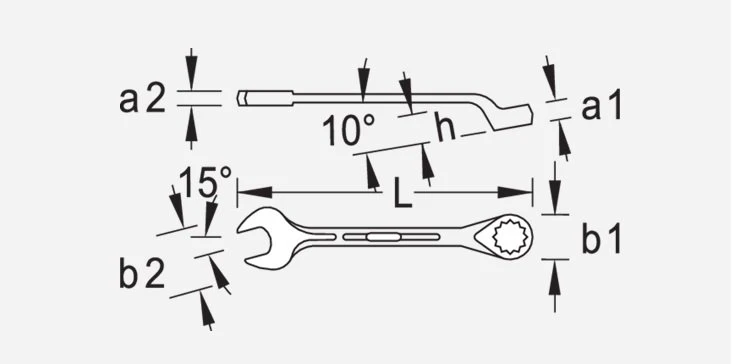

• Length: 412mm
• A1: 20.5mm.
• A2: 11.8mm
• B1: 45.8mm.
• B2: 70.5mm.
• H: 39mm
• Weight: 0.861kg.
